Compact Modular Aluminium Conveyor



PROJECT BRIEF

A new conveyor was required to transfer product from a wrapper to a metal detector, to replace an existing chute after both machines were repositioned.



DESIGN FEATURES

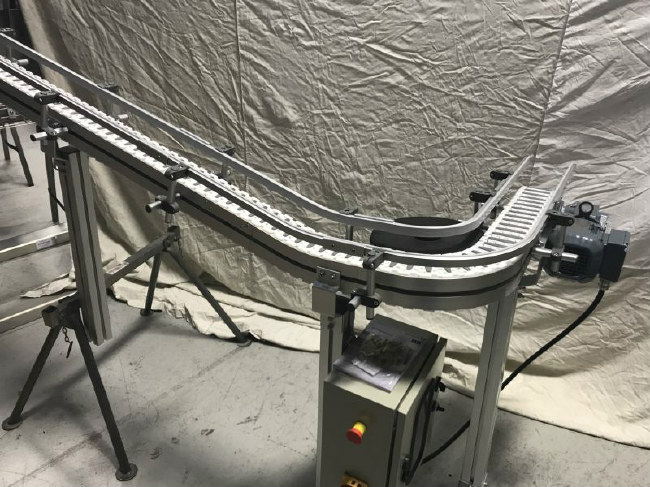

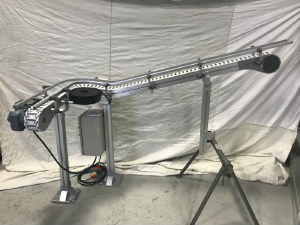

Due to the relatively small foot print a dia 170mm wheel bend is used. A 20 deg vertical is used to create the incline. Both wheelbend and vertical bend are standard components in the FC103 range



PRODUCTS USED
