ICS was involved in design, supply and installing 40 plus new and modified conveyors in a room extension at our Hamilton plant. With regular project meetings leading up to the installation everything they supplied fulfilled all production requirements. The job was installed without any issues on time and within budget. All of the new equipment ran 100% on the first production day reaching tally and has not slowed down since. I have no hesitation in recommending ICS to anyone for a quality system installation along with excellent communication at all levels.
We have a team of highly experienced design engineers who are available to assist you with your new project. Contact us to arrange a no-obligation consultation.
Well experienced in assessing the processes used in your factory and designing a solution to improve efficiency, quality and safety. Many of our customers have reported business growth, happier staff and happier customers after our conveyors systems have been put to use in their businesses.
PROJECT BRIEF

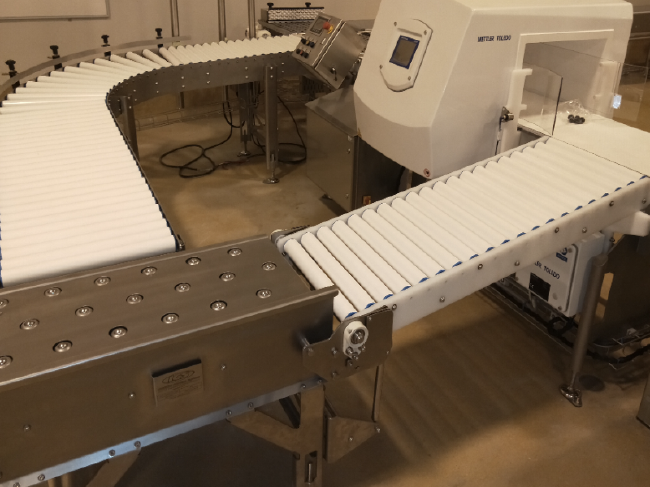

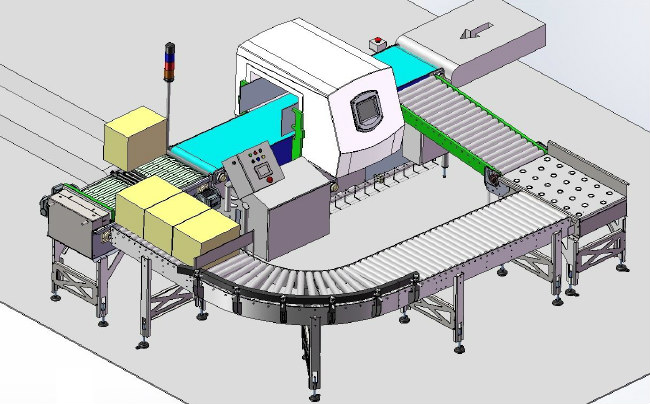

Full turn key layout for the integration of a new metal detector and ICS reject system with re-circulation rollers for testing
DESIGN FEATURES

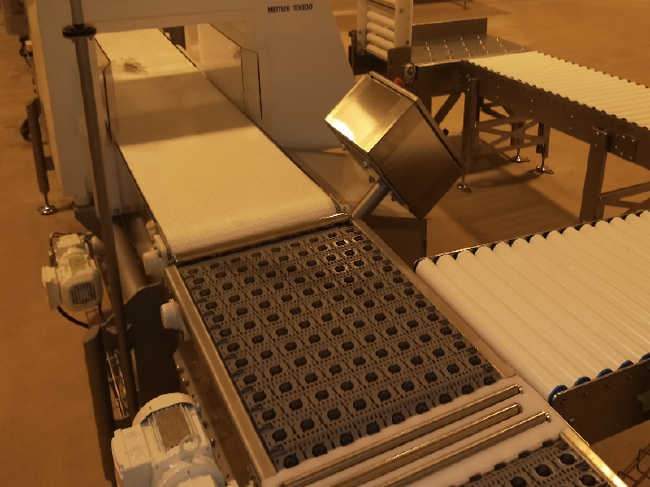

Passive belts used to reject and control product flow.

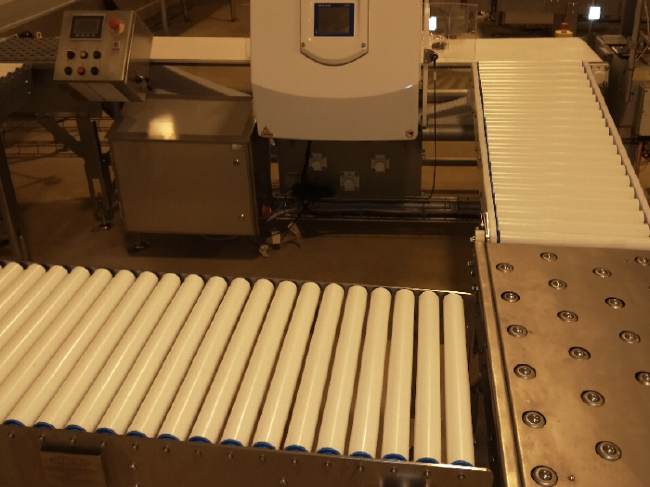

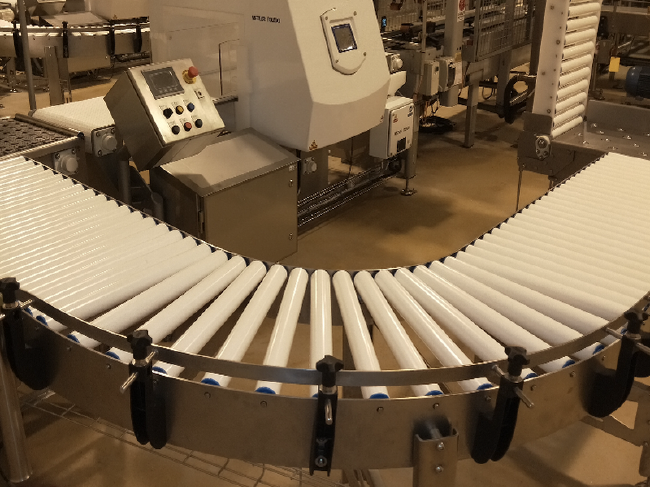

Gravity roller conveyor with free running bearings so boxes travel easily.
Multi-directional roller conveyor so the operator can manually correct the box orientation.
Lift-up gate which allows the operator to access the metal detector for testing.
Fully tested in our workshop before delivery.
PRODUCTS USED

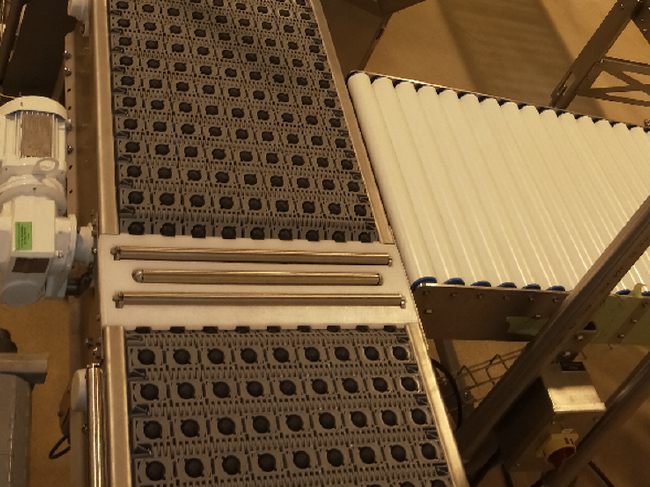

Intralox series 400 45deg roller passive off belt
multi-directional rollers
PVC 50dia free running rollers
